Features
- UL Certification
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS)
- Supports USB on-the-go function
- Data log events stored in the inverter
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Adjustable high-power charging current
-
Adjustable input voltage range for home appliances and personal computers
- Compatible with Utility Mains or generator input

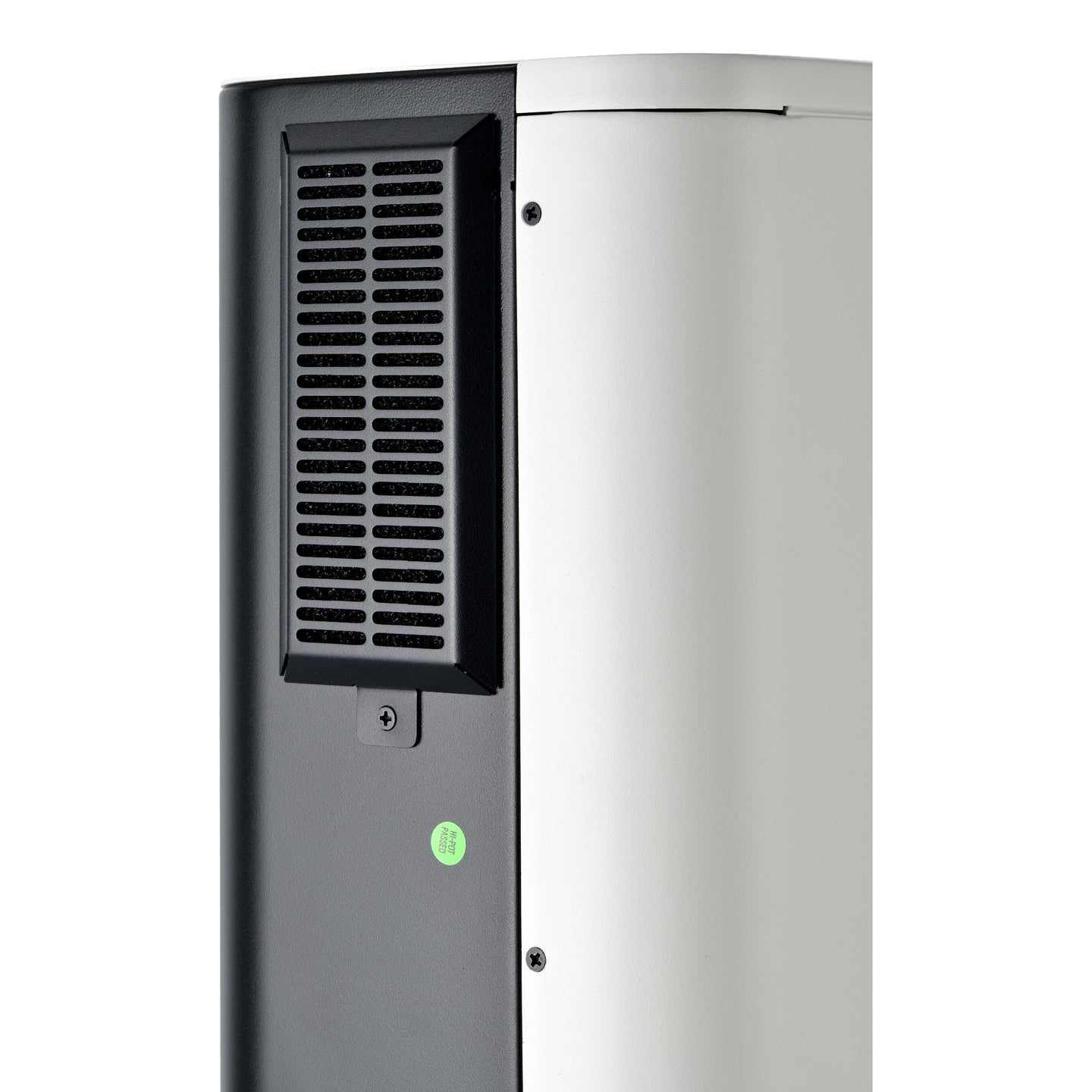

- Built-in anti-dust kit
- Optional DC output for DC fan, LED bulb, router, etc.
- 6-unit parallel operation capabilities

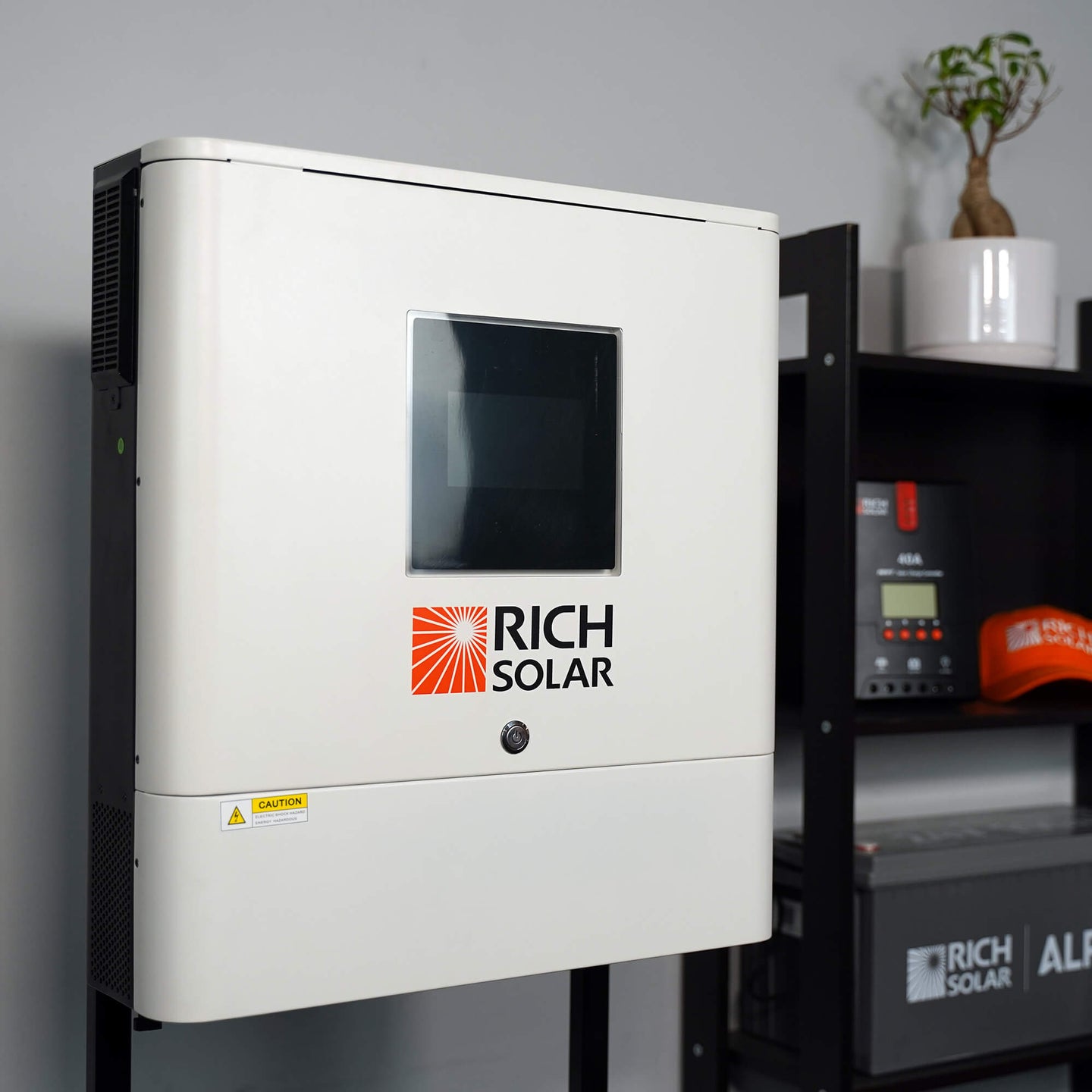

Simple Install, Smart Control
The NOVA Series 6500S Inverter provides convenient, smart energy management.
With built-in Wi-Fi, you can easily connect with your Android or iOS device
using the RICH SOLAR monitoring app for real-time monitoring, electricity
usage tracking, and data logging. RGB status lights facilitate monitoring and
management while USB On-the-Go enables easy data upload/download.
Powerhouse for Heavy Loads
power high-demand devices with the RICH SOLAR NOVA Series 6500S Inverter. It
provides a continuous power of 6500W, reaching a peak of 13kW. This model
enables a high output power of up to 39kW, supported by a parallel operation
of up to 6 units in single-phase, split-phase, or 3-phase configurations.
Flexibility Without Batteries
The NOVA Series 6500S inverter offers flexibility by making the battery
optional. For lighter loads and stable solar panel output, no battery
connection is necessary. However, if needed, it is compatible with a range of
battery types, including AGM, Pylontech, WECO, Soltaro, LIB-Protocol, and
third-party lithium batterie

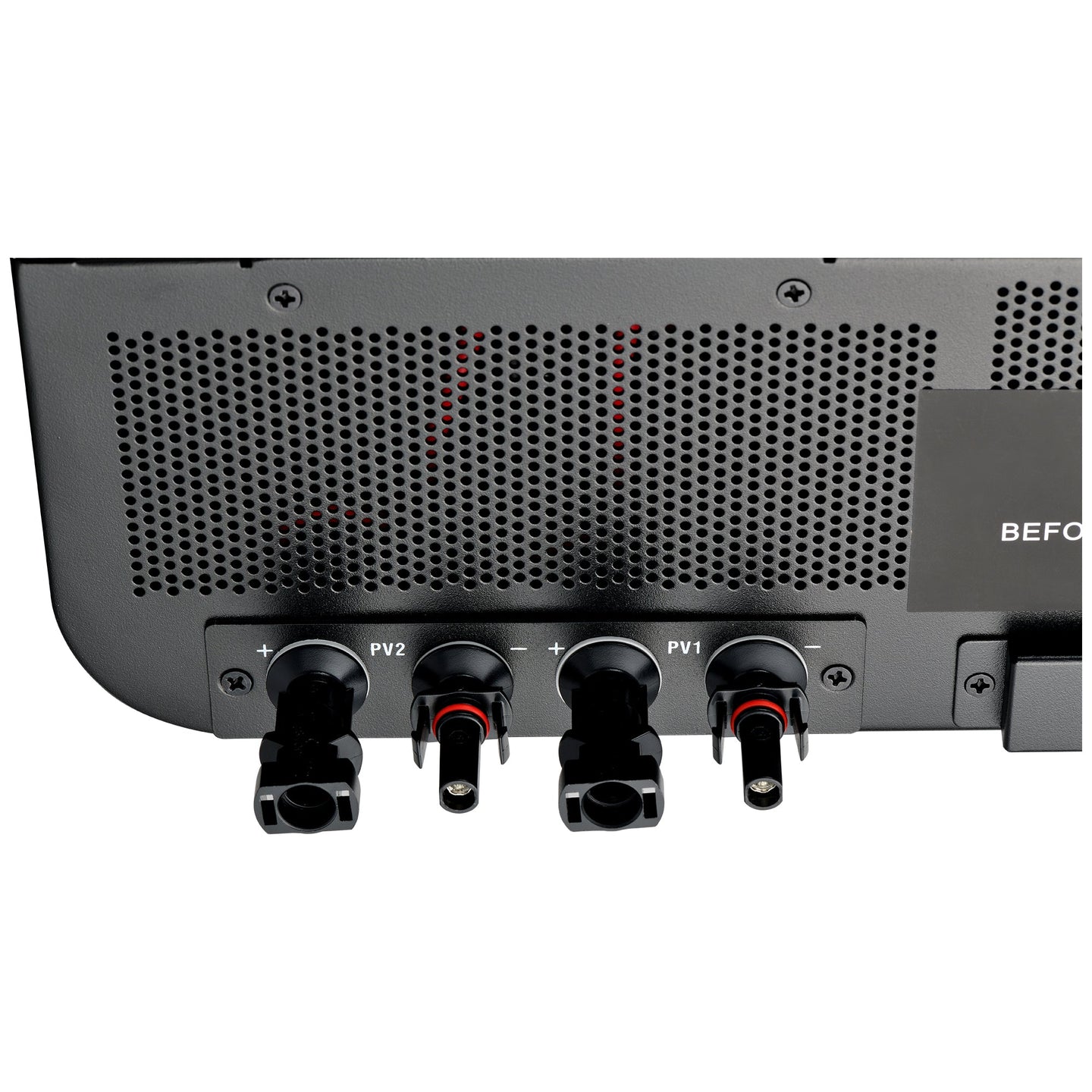

MPPT Control for Enhanced Performance
Equipped with an MPPT controller, the solar inverter maximizes efficiency with
a wide voltage range of 90-230 VDC, achieving a high peak efficiency of 91%
while also protecting batteries for extended lifespan and sustainable
performance.
Pure Sine Wave Technology
Pure sine wave output ensures high stability and premium quality to safeguard
devices and prolong their lifespan, operating quietly to minimize noise
interference.
Multi-Compatible Inverter for Various Devices
The NOVA Series 6500S Solar Inverter's wide input voltage range is compatible
with most electronics and appliances (80 - 140 VAC). The inverter also offers
high-power charging from 10A to 120A for a wide range of batteries. The
optional DC output supports fans, LED bulbs, and routers, making it versatile
and efficient.
Three Charging Modes for Versatile Power
Solar First
Solar energy will charge the battery as a priority. If solar isn't available
the grid will take over.
Solar & Utility Grid
Solar energy and utility will charge battery at the same time.
Only Solar
Solar energy will be the only charging source, regardless of grid
availability.
Three Load Output Working Modes
Utility Grid First
Utility will provide power to the loads as first priority. Solar and battery
energy will provide power to the loads only when utility power is not
available.
Solar First
Solar energy provides power to the loads as first priority. If solar energy
isn't sufficient to power connected loads, the utility grid will supply power
to the loads at the same time.
SBU Priority
Solar energy provides power to the loads as first priority. If solar energy is
not sufficient to power all connected loads, battery energy will supply power
to the loads at the same time. The utility grid provides power to the loads
only when the battery voltage drops to a low voltage warning.
Your Safety, Our Priority
Experience safe and reliable operation with the NOVA Series 6500S, featuring
multiple protection measures including overload, over-temperature, and short
circuit protection. Seamlessly integrate a BMS with the reserved port for
enhanced functionality. Operating within a temperature range of 14°F to 122°F,
the 6500S Inverter ensures seamless adaptation to diverse climates,
guaranteeing year-round efficient and secure performance.
Specifications
-
-
Model: RS-H6548S
-
Rated Inverter Power: 6500VA/6500W
-
Parallel Capability: Yes, 6 units
-
Input
-
Voltage: 120 VAC
-
Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC
(For Home Appliances)
-
Frequency Range: 50 Hz/60 Hz (Auto Sensing)
-
Output
-
AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
-
Surge Power: 13000VA
-
Efficiency (Peak): 91%
-
Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home
Appliances)
-
Waveform: Pure Sine Wave
-
No Load Power Consumption: <75W
-
DC Voltage: 12 VDC ± 5%, 100W
-
Battery
-
Battery Voltage: 48 VDC
-
Float Charging Voltage: 54 VDC
-
Overcharge Protection: 66 VDC
-
Solar Charger & AC Charger
-
Solar Charger Type: MPPT
-
Maximum PV Array Power: 8000W (4000W x 2)
-
MPPT Operating Voltage Range: 90 ~ 230 VDC
-
Maximum PV Array Open Circuit Voltage: 250 VDC
-
Maximum Solar Charge Current: 120A
-
Maximum AC Charge Current: 120A
-
Maximum Charge Current: 120A
-
Physical
-
Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
-
Net Weight: 44 lb
-

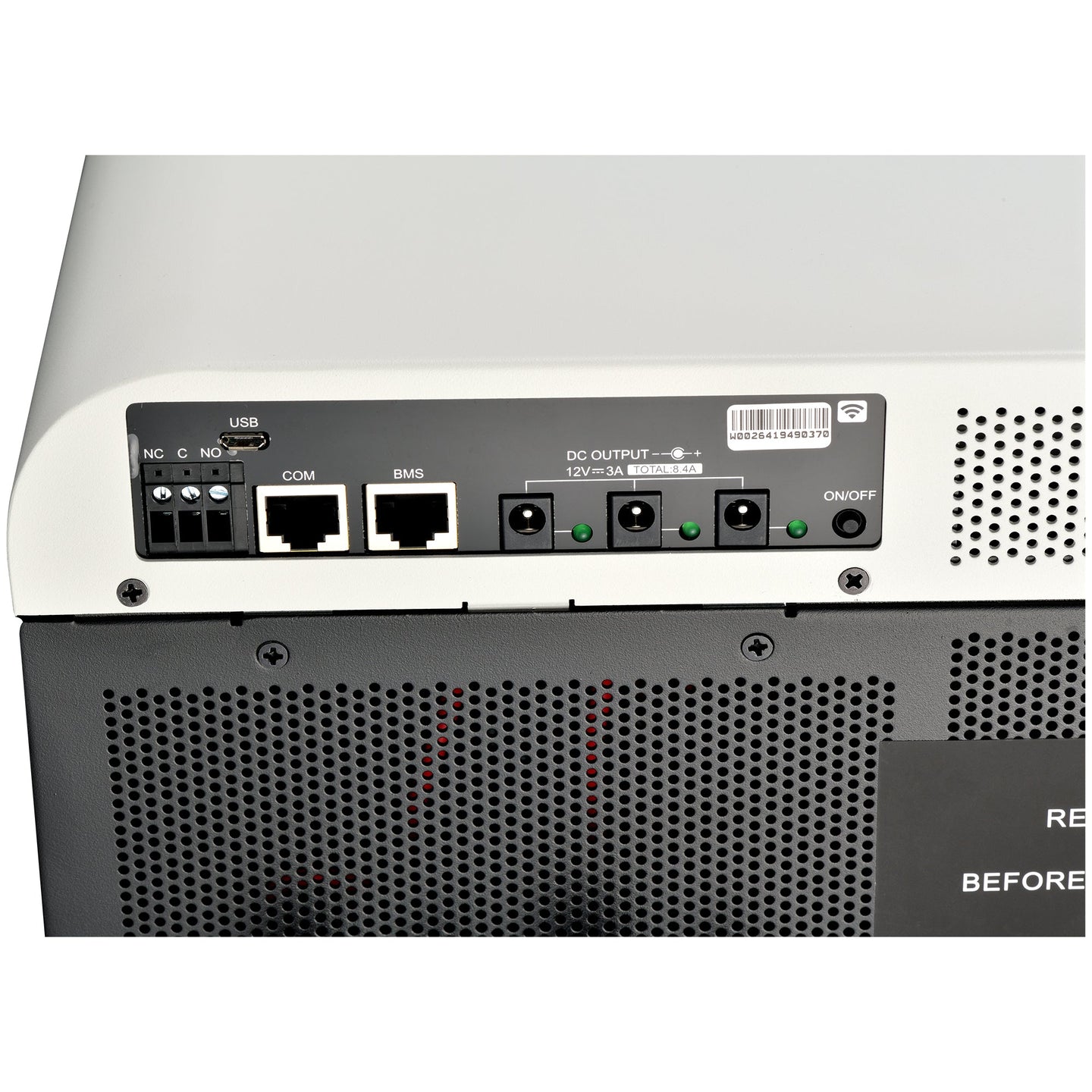

Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
-
Operating Environment
-
Humidity: 5% to 95% Relative Humidity (Non-condensing)
-
Operating Temperature: 14°F to 104°F
-
Storage Temperature: 5°F to 140°F
-
Standard
